Volumetric filling machine

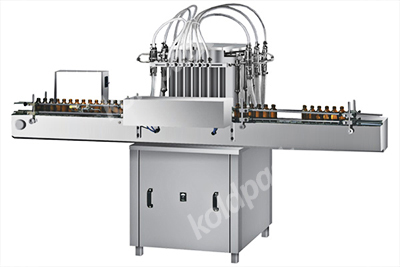

KOLDPACK Automatic Volumetric Liquid Bottle Filling Machine works on volumetric principle with diving nozzles. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, consists of S.S. Slat Conveyor, Reciprocating Nozzle with self-centering devices & SS Syringe. No container No filling system arrangement is a standard feature of the machine. The main drive of the machine and conveyor drive consist of A/c Motor with synchronized variable A/c Frequency Drive.

01 Salient Features

± 1 % Filling accuracy on single dose.
No Bottle No Filling System.
Rigid vibration free construction for trouble free performance.
SS Elegantly matt finished body.

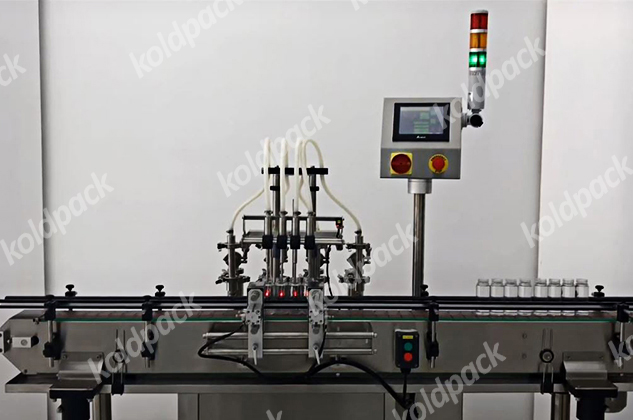

Elegant and easy control panel for total control on an operation.
Minimum charge overtime, from one size to another container or fill size.
Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction wear surface, smooth and noiseless conveying.
Drip tray under the conveyor.
Pneumatic bottle stopping arrangement.
Synchronized two nos. A/c drives for main motor & conveyor belt.
Safety guard for conveyor gearbox, motor and pneumatic cylinders.
MCB for over load protection, and prevention against short circuits.
Inbuilt protection against over current, voltage fluctuation, short circuit in A/c frequency drive.

02 Technical Specifications

Model	KL2H/AV	KL4H/AV	KL6H/AV	KL8H/AV
Number Of Filling Head	2	4	6	8
Capacity in Bottles Per Hour @ 1000 ml	2400 BPH	3600 BPH	5400 BPH	7200 BPH
Compressed Air Consumption @4 to 6 Bar	0.5 CFM	0.5 CFM	0.5 CFM	1 CFM
Electric Power	1.5 KW	1.5 KW	2 KW	2 KW
Bottle Filling Range	50 ml to 1000 ml
Application	Household, cosmetics, pharma products, syrup, oil, chemicals, foamy & viscous product.

03 Operation

After manual loading of containers on rotary Unscrambler the containers moving on SS Slat conveyor, feed below the filling nozzles through a settable twin pneumatically operated stopper system. The twin pneumatically operated stopper system and reciprocating nozzles can precisely match for centering of container below nozzles, to avoid spillage of liquid on container.

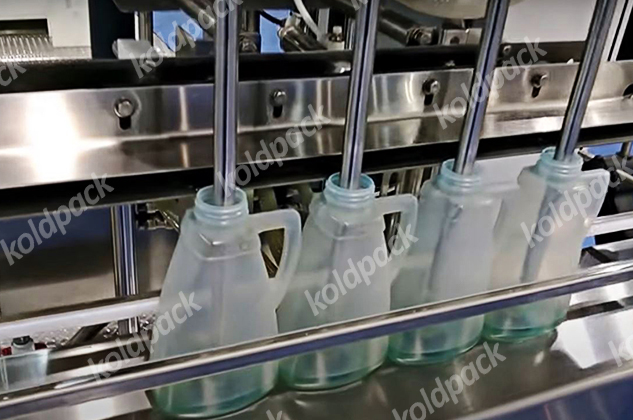

To minimize foaming adjustable nozzle will reciprocate according to filling dose, nozzle will go upwards slowly from bottom level of bottle towards neck during filling. The dosing block with a hexagonal bolt fitted below syringes. This means fill size can be easily set.
